ME2381 Series

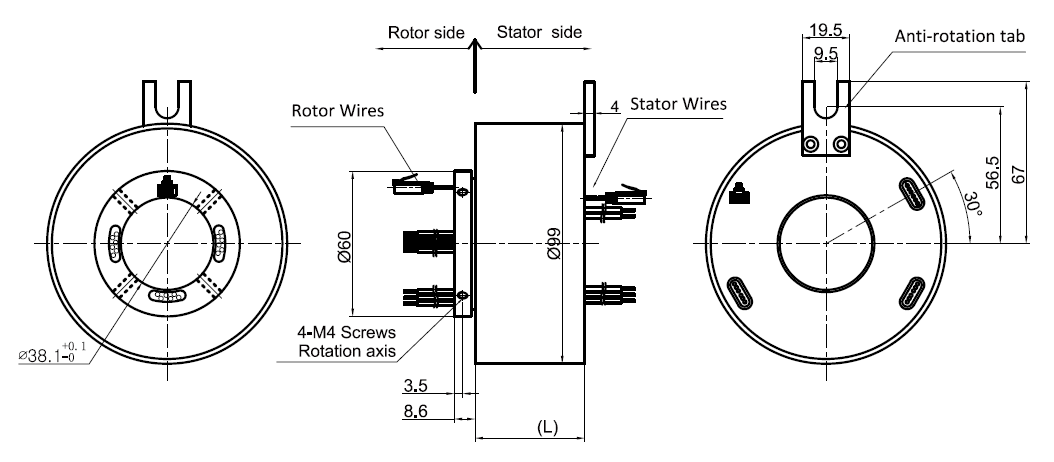

Bore size 38.1mm, OD 99mm, 1 channel 100/1000M Ethernet+2~60 circuits
ME2381 slip rings
  • ME2381,support 1 channel 1000M base T Ethernet slip rings, with compact OD 99mm,ID,38.1mm, can transfer 100M/1000M Ethernet signal,which is stable ,no packet loss,not string of code,small return loss,low insertion loss ,strong antijamming capability ,also can mixed with electrical power and signal rings,military coating technology ,super low BER error rate.
Standard series PART# Explanation

Product Quality Level Table
Products Level CodeMax speedWorking LifeContact Material
VC150RPM10Million Revs.Precious Metal
VD600RPM20Million Revs.Gold-plated

Specification
Ethernet SpecificationMechanical data
ParameterValueParameterValue
100M/1000M1Working LifeSee Prod Quality Level
ConnectorRJ45Rotating SpeedSee Prod Quality Level
BER Error rate10E-11Working Temp.-30℃~80℃
Electrical dataOperating Humidity0~85% RH
ParameterValueContact MaterialSee Prod Quality Level
PowerSignalHousing MaterialAluminium Alloy
Rated Voltage0~440VAC/VDC0~440VAC/VDCTorque0.1N.m;+0.03/6ring
Insulation Res≥1000MΩ/500VDC≥1000MΩ/500VDCProtection gradeIP51
Lead WiresAWG16#TeflonAWG22#Teflon
Lead LengthStandard 300mm
Dielectric Strength500VAC@50Hz,60s
Res Noise<0.01Ω



ME2381 Series Ethernet Slip Ring
Part#1000M
Ethernet
10A20ASignal
/5A
Length
(mm)
Part#1000M
Ethernet
10A20ASignal
/5A
Length
(mm)
ME2381-S04100465.6ME2381-P0810-S081808106.4
ME2381-P0410140065.6ME2381-S2210022126.8
ME2381-P0420104086ME2381-P0410-S1814018126.8
ME2381-S101001086ME2381-P221012200126.8
ME2381-P0210-S08120886ME2381-P0610-S2216022147.2
ME2381-P0610-S04160486ME2381-P0610-S3416034188
ME2381-S1610016106.4ME2381-S4010040188
ME2381-P161011600106.4ME2381-P0610-S4016040208.4
ME2381-P0410-S1214012106.4ME2381-S4610046208.4

1)10A,20A,5A can be combined in any way,we'd pleased to help if need higher than 2A
