MP370 Series
ID 70mm, 17.1~90mm for 2~24 rings
MP370 slip rings
  • MP370 pancake slip ring have a thickness from 17.1~90mm for 2~24 rings,with all aluminum alloy structure,using precious metal contact material and gold-plated processing, It can transmit stable signal and power with small resistance fluctuations,
    Designed for min thickness requirements,when thickness is restrictive but diameter is less restrictive.
Standard series PART# Explanation

Product Quality Level Table
Products Level CodeMax speedWorking LifeContact Material
VC60RPM3Million Revs.Precious Metal
VD200RPM10Million Revs.Precious Metal

Specification
Mechanical dataElectrical data
ParameterValueParameterValue
Working LifeSee Prod Quality LevelPowerSignal
Rotating SpeedSee Prod Quality LevelRated Voltage0~440VAC/VDC0~240VAC/VDC
Working Temp.-30℃~80℃Insulation Res≥1000MΩ/500VDC≥1000MΩ/500VDC
Operating Humidity0~85% RHLead WiresAWG16#TeflonAWG22#Teflon
Contact MaterialSee Prod Quality LevelLead LengthStandard 300mm
Housing MaterialAluminium AlloyDielectric Strength500VAC@50Hz,60s
Torque0.1N.m;+0.03/6ringRes Noise<0.01Ω
Protection gradeIP51

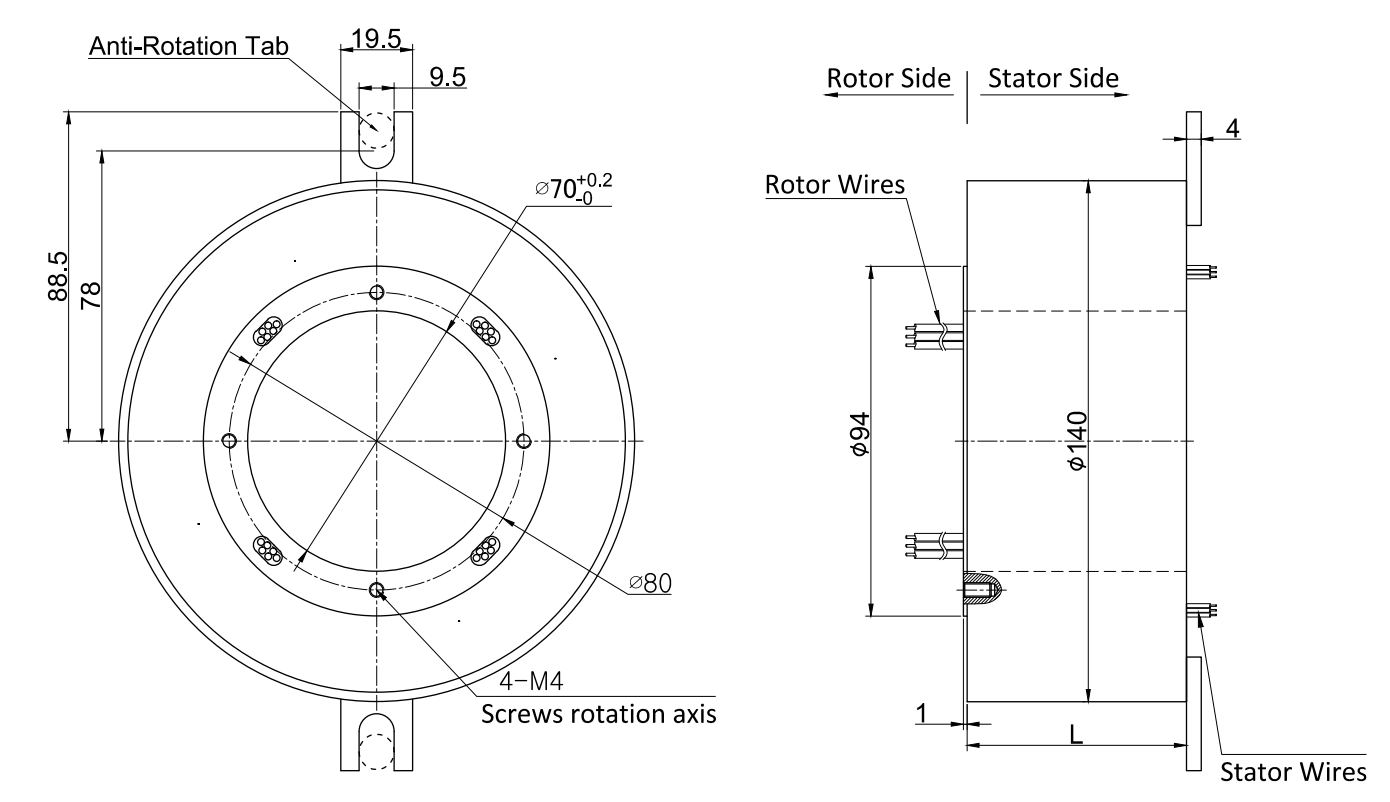

MP370 series pancake slip ring
Part#Signal/5A10A20ALength(mm)
MP370-S0220017.5
MP370-P021002017.5
MP370-P0210-S0222023.5
MP370-P041004023.5
MP370-S0660029.5
MP370-P061006029.5
MP370-P062000629.5
MP370-P0210-S0442029.5
MP370-S12120047.5
MP370-P1210012047.5
MP370-P1220001247.5
MP370-P0610-S0666047.5
MP370-P0620-S0660647.5
MP370-S18180065.5
MP370-P1810018065.5
MP370-P0610-S12126065.5
MP370-P1210-S06612065.5
MP370-P0810-S10108065.5
MP370-S24240083.5
MP370-P2410024083.5
MP370-P0610-S18618083.5
MP370-P1210-S121212083.5

Through bore size,total circuits and current can be customized,please contact sales
