MT1242 Series

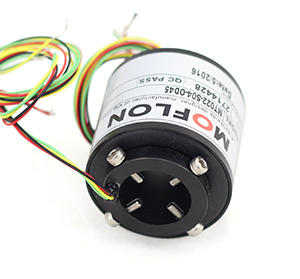

MT Series Through Bore Slip Ring

Standard compact slip ring with bore size 12.7mm(1/2”,used for<=12.7mm),OD 42mm.*Attention:if required through bore <12.7mm,this can be solved by adding a sleeve inside the bore.

Standard series PART# Explanation:



  See how to works for through bore slip rings?
  See life testing for MOFLON slip rings?
  See slip rings life testing software for MOFLON slip rings.
  See electrical noise curve of MOFLON slip rings.
  See typical moflon slip rings pictures.


Product Quality Level Table
Products Level CodeMax sppedWorking LifeContact Material
VC400RPM30Million Revs.Precious Metal
VD1200RPM80Million Revs.Precious Metal

Specification
Mechanical dataElectrical data
ParameterValueParameterValue
Working LifeSee Prod Quality LevelPowerSignal
Rotating SpeedSee Prod Quality LevelRated Voltage0~440VAC/VDC0~440VAC/VDC
Working Temp.-30℃~80℃Insulation Res≥1000MΩ/500VDC≥1000MΩ/500VDC
Operating Humidity0~85% RHLead WiresAWG22TeflonAWG22#Teflon
Contact MaterialSee Prod Quality LevelLead LengthStandard 300mm
Housing MaterialAluminium AlloyDielectric Strength500VAC@50Hz,60s
Torque0.1N.m;+0.03/6ringRes Noise<0.01Ω
Protection gradeIP51


MT1242 Series Parts# List
Part#Signal/5ALength(mm)
MT1242-S02225.4
MT1242-S03325.4
MT1242-S04425.4
MT1242-S06625.4
MT1242-S08839.2
MT1242-S101039.2
MT1242-S121239.2

For a detailed outline drawing of a specific model number, or to request a quotation, please contact your local sales representative (see our website http://www.moflon.com/contact.html) or send an email to sales@moflon.com
