MT25119 Series
Bore size 25.4mm, OD 119mm, 2~144 rings

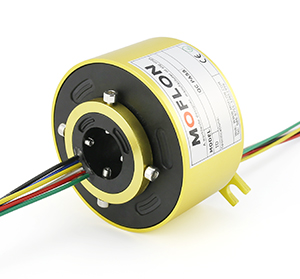

MT25119 slip rings
  • Standard compact series slip ring with bore size 25.4mm(used for<=25.4mm),OD 119mm *Attention:if required through bore <25.4mm,this can be solved by adding a sleeve inside the bore.

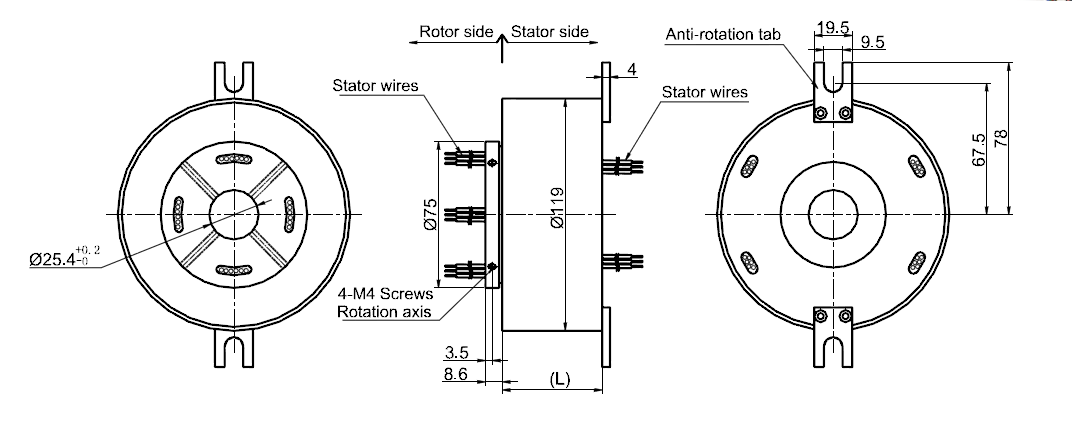

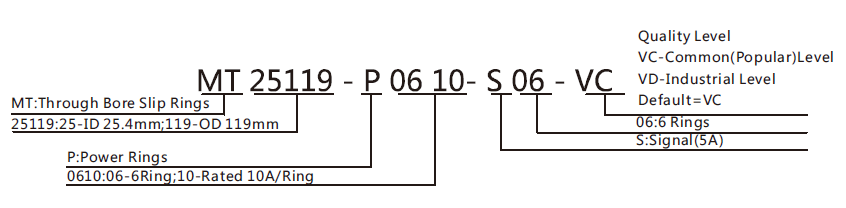

Standard series PART# Explanation

Product Quality Level Table
Products Level CodeMax speedWorking LifeContact Material
VC400RPM30Million Revs.Precious Metal
VD800RPM80Million Revs.Precious Metal
VH1200RPM150 Million RevsGold-plated

Specification
Mechanical dataElectrical data
ParameterValueParameterValue
Working LifeSee Prod Quality LevelPowerSignal
Rotating SpeedSee Prod Quality LevelRated Voltage0~690VAC/VDC0~440VAC/VDC
Working Temp.-30℃~80℃Insulation Res≥1000MΩ/500VDC≥1000MΩ/500VDC
Operating Humidity0~85% RHLead WiresAWG16#TeflonAWG22#Teflon
Contact MaterialSee Prod Quality LevelLead LengthStandard 300mm
Housing MaterialAluminium AlloyDielectric Strength1000VAC@50Hz,60s
Torque0.1N.m;+0.03/6ringRes Noise<0.01Ω
Protection gradeIP51



MT25119 Series Parts# List
Part#10ASignal/5ALength(mm)Part#10ASignal/5ALength(mm)
MT25119-S0202 36 MT25119-S48 0 48 217.4
MT25119-P02102036 MT25119-P0610-S42 6 42 217.4
MT25119-S0303 39.8 MT25119-P0910-S39 9 39 217.4
MT25119-P0312.63039.8 MT25119-P1210-S36 12 36 217.4
MT25119-S0606 51.2 MT25119-P1810-S30 18 30 217.4
MT25119-P0210-S042451.2 MT25119-P2410-S24 24 24 217.4
MT25119-P0410-S024251.2 MT25119-S60 0 60 263
MT25119-P06106051.2 MT25119-P0610-S54 6 54 263
MT25119-S12012 74 MT25119-P0910-S51 9 51 263
MT25119-P0210-S1021074 MT25119-P1210-S48 12 48 263
MT25119-P0312.6-S093974 MT25119-S72 0 72 312.6
MT25119-P0610-S066674 MT25119-P0610-S66 6 66 312.6
MT25119-P0810-S048474 MT25119-P1210-S60 12 60 312.6
MT25119-P1010-S0210274 MT25119-P2410-S48 24 48 312.6
MT25119-P121012074 MT25119-P3610-S36 36 36 312.6
MT25119-S18018 96.8 MT25119-S84 0 84 312.6
MT25119-P0210-S1621696.8 MT25119-P1210-S72 12 72 312.6
MT25119-P0410-S1441496.8 MT25119-P2410-S60 24 60 312.6
MT25119-P0610-S1261296.8 MT25119-P3610-S48 36 48 312.6
MT25119-P0810-S1081096.8 MT25119-S96 0 96 403.8
MT25119-P1010-S0810896.8 MT25119-P1210-S84 12 84 403.8
MT25119-P1210-S0612696.8 MT25119-P2410-S72 24 72 403.8
MT25119-P1410-S0414496.8 MT25119-P3610-S60 36 60 403.8
MT25119-P1610-S0216296.8 MT25119-P4210-S54 42 54 403.8
MT25119-S24024 119.6MT25119-S108 0 108 453.4
MT25119-P0410-S20420119.6 MT25119-P1210-S96 12 96453.4
MT25119-P0610-S18618119.6MT25119-P2410-S84 24 84453.4
MT25119-P1210-S121212119.6MT25119-P3610-S72 36 72453.4
MT25119-P1810-S06186119.6 MT25119-S120 0 120 499
MT25119-P2410240119.6MT25119-P1210-S108 12 108499
MT25119-S30030 142.4MT25119-P2410-S96 24 96499
MT25119-P0610-S24624142.4MT25119-P3610-S84 36 84499
MT25119-P1210-S181218142.4MT25119-P4810-S72 48 72499
MT25119-P1810-S121812142.4MT25119-S132 0 132 544.6
MT25119-P2410-S06 24 6 142.4 MT25119-P1210-S120 12 120 544.6
MT25119-P3010 30 0 142.4 MT25119-P2410-S108 24 108 544.6
MT25119-S36 0 36 169.2 MT25119-P3610-S96 36 96 544.6
MT25119-P0610-S30 6 30 169.2 MT25119-P4810-S84 48 84 544.6
MT25119-P1210-S24 12 24 169.2 MT25119-S144 0 144 590.2
MT25119-P3610 36 0 169.2 MT25119-P1210-S132 12 132590.2
MT25119-S42 0 42 192 MT25119-P2410-S120 24 120590.2
MT25119-P0610-S36 6 36 192 MT25119-P3610-S108 36 108590.2
MT25119-P1210-S30 12 30 192 MT25119-P4810-S96 48 96590.2

Note: Power 10A and signal(5A) can combine freely, please contact customer service for more details. Our slip rings can be customized on the basis of standard slip rings. Should contact customer service for more information.
(see our website http://www.moflon.com/contact.html)or send an email to sales@moflon.com
