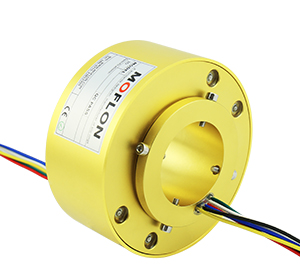

MT60130 Series

MT Series Through Bore Slip Ring

Standard compact series slip ring with bore size 60mm(used for<=60mm),OD 130mm.*Attention:if required through bore <60mm,this can be solved by adding a sleeve inside the bore.

  See how to works for through bore slip rings?
  See life testing for MOFLON slip rings?
  See slip rings life testing software for MOFLON slip rings.
  See electrical noise curve of MOFLON slip rings.
  See typical moflon slip rings pictures.

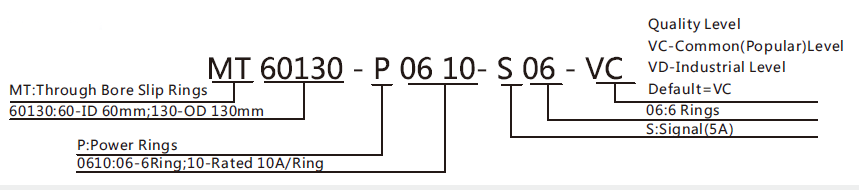

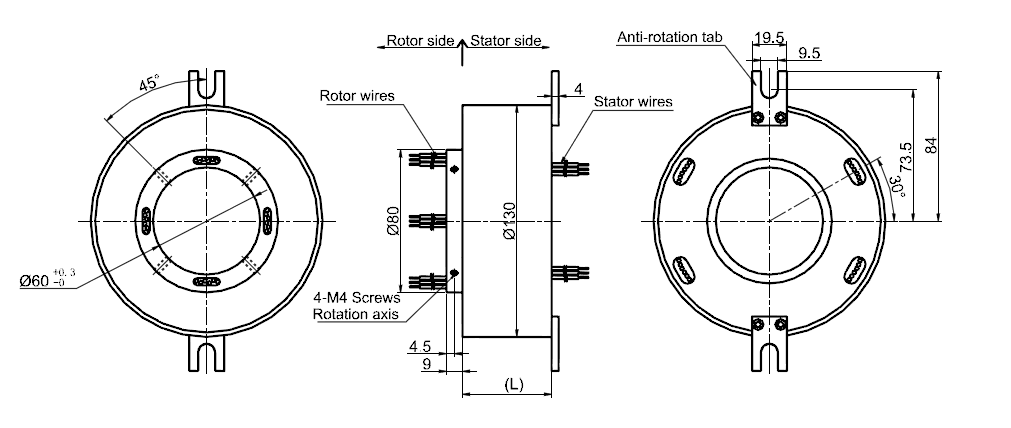

Standard series PART# Explanation:



Product Quality Level Table
Products Level CodeMax sppedWorking LifeContact Material
VC250RPM20Million Revs.Precious Metal
VD600RPM80Million Revs.Precious Metal
VH1000RPM150 Million RevsGold-plated

Specification
Mechanical dataElectrical data
ParameterValueParameterValue
Working LifeSee Prod Quality LevelPowerSignal
Rotating SpeedSee Prod Quality LevelRated Voltage0~690VAC/VDC0~440VAC/VDC
Working Temp.-30℃~80℃Insulation Res≥1000MΩ/500VDC≥1000MΩ/500VDC
Operating Humidity0~85% RHLead WiresAWG16#TeflonAWG22#Teflon
Contact MaterialSee Prod Quality LevelLead LengthStandard 300mm
Housing MaterialAluminium AlloyDielectric Strength1000VAC@50Hz,60s
Torque0.1N.m;+0.03/6ringRes Noise<0.01Ω
Protection gradeIP51


MT60130 Series Parts# List
Part#10ASignal/5ALength(mm)Part#10ASignal/5ALength(mm)
MT60130-S020235.6 MT60130-S36036 162
MT60130-P02102035.6 MT60130-P0610-S30630162
MT60130-S0303 39.2 MT60130-P1210-S241224162
MT60130-P031030 39.2 MT60130-P3610360162
MT60130-S0606 50 MT60130-S42042 183.6
MT60130-P0210-S042450 MT60130-P0610-S36636183.6
MT60130-P0410-S024250 MT60130-P1210-S301230183.6
MT60130-P06106050 MT60130-S48048 205.2
MT60130-S12012 71.6 MT60130-P0610-S42642205.2
MT60130-P0210-S1021071.6 MT60130-P0910-S39939205.2
MT60130-P0310-S093971.6 MT60130-P1210-S361236205.2
MT60130-P0610-S066671.6 MT60130-P1810-S301830205.2
MT60130-P0810-S048471.6 MT60130-P2410-S242424205.2
MT60130-P1010-S0210271.6 MT60130-S60060 248.4
MT60130-P121012071.6 MT60130-P0610-S54654248.4
MT60130-S18018 93.2 MT60130-P0910-S51951248.4
MT60130-P0210-S1621693.2 MT60130-P1210-S481248248.4
MT60130-P0410-S1441493.2 MT60130-S72072 295.6
MT60130-P0610-S1261293.2 MT60130-P0610-S66666295.6
MT60130-P0810-S1081093.2 MT60130-P1210-S601260295.6
MT60130-P1010-S0810893.2 MT60130-P2410-S482448295.6
MT60130-P1210-S0612693.2 MT60130-P3610-S363636295.6
MT60130-P1410-S0414493.2 MT60130-S84084 338.8
MT60130-P1610-S0216293.2 MT60130-P1210-S721272338.8
MT60130-S24024 114.8 MT60130-P2410-S602460338.8
MT60130-P0410-S20420114.8 MT60130-P3610-S483648338.8
MT60130-P0610-S18618114.8 MT60130-S96096 382
MT60130-P1210-S121212114.8 MT60130-P1210-S841284382
MT60130-P1810-S06186114.8 MT60130-P2410-S722472382
MT60130-P2410240114.8 MT60130-P3610-S603660382
MT60130-S30030 136.4 MT60130-P4210-S544254382
MT60130-P0610-S24624136.4 MT60130-S1080108 429.2
MT60130-P1210-S181218136.4 MT60130-P1210-S961296429.2
MT60130-P1810-S121812136.4 MT60130-P2410-S842484429.2
MT60130-P2410-S06246136.4 MT60130-P3610-S723672429.2
MT60130-P3010300136.4 MT60130-P4810-S604860429.2

Note: Power 10A and signal(5A) can combine freely, please contact customer service for more details. Our slip rings can be customized on the basis of standard slip rings. Should contact customer service for more information.
(see our website http://www.moflon.com/contact.html)or send an email to sales@moflon.com
