Provide High Performance 360°
Rotary Solutions for Worldwide
Thtough bore slip ring is a joint name for those electrical slip rings with hole in the center,it normally installed by fixing the outer ring and inner ring rotary...
Pneumatic hydraulic slip ring is a 360° rotary electrical device, especial in industrial application...
Rotor flange slip ring is the one with flange on rotor, picture as below...
stator flange slip ring means flange located on outer of the slip ring, picture as below...

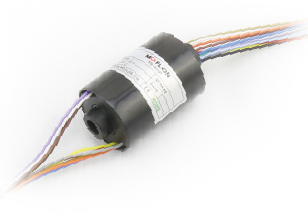

Through bore slip ring is the one has hole in the center, rotor part rotating, stator part fixing for general installation, but it's also ok with stator part rotating, rotor part fixing...

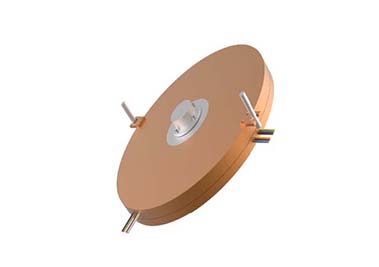

Pancake slip ring is a general terms, which is applied to equipment that has heght limitation and can meet the special requirement about the special space...
PCB slip ring is PCB board as the substrate. The rings are directly fixed on the PCB board and then pressuring them together, contacting with shrapnel and contacts...
Separate slip ring has a separate rotor and brushes, it can sovle the problem of limited installation dimension
Usually miniature slip ring will use the installation without flange
Fiber optic rotary joint is also called fiber optic slip ring, photo-electricity collector ring, which adopts fiber optic as the data transmission media...
