ProductsSlip Rings MC - Capsule Slip Rings MC190 Series

MC190 Series

6 wires slip rings, OD 22mm

6 wires slip rings

MC190 is economical 6 wires slip ring with compact OD 22mm, signal(2A)/ring.
MC190 is standard capsule slip rings with gold-gold contacts,which ensured the stabilty of the signal transmission and working life, mainly used for civilian, commercial areas.
MC1909 is the high-end version corresponding to MC190, ultra-thick gold-plated, imported bearings, rare metal alloy brushes, mainly used for military, defense and other non-civilian areas.

Download MC190 Catalog Download 3D Model

Standard series PART# Explanation

Product Quality Level Table
The difference between MC190 and Mc1909:
Part#	Max speed	Working life	Torque	Housing Material	Electrical noise①@10Rpm
MC190	250RPM	>5 million Revs	0.02 N·m	Plastics	10mΩ
MC1909	1000RPM	>20 million Revs	0.005 N·m	Metal	4mΩ

Specification
Mechanical data		Electrical data
Parameter	Value	Parameter	Value
Working Life	See Prod Quality Level		Power	Signal
Rotating Speed	See Prod Quality Level	Rated Voltage	0~220VAC/VDC	0~120VAC/VDC
Working Temp.	-30℃~80℃	Insulation Res	≥100MΩ/220VDC	≥100MΩ/150VDC
Operating Humidity	0~85% RH	Lead Wires	AWG#28 teflon	AWG#28 teflon
Contact Material	See Prod Quality Level	Lead Length	Standard 300mm
Housing Material	See Prod Quality Level	Dielectric Strength	500VAC@50Hz,60s
Torque	0.05N.m˙+0.01/1ring	Res Noise	<0.01Ω
Protection grade	IP51

MC190 Series Parts# List
Part#	Signal/2A	4A	8A	15A	Total Wires
MC190	6	0	0	0	6
MC190-P0204-S02	2	2	1	0	4
MC190-P0304	0	3	0	0	3
MC190-P0108-S02	2	0	1	0	3

If you have special requirements for MC190 6 wires slip ring, please contact customer service.

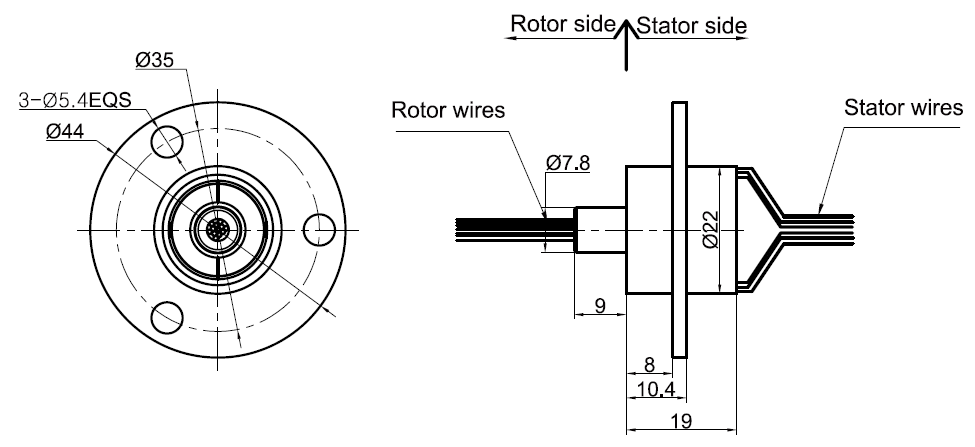

MC190

MC190-FL01

MC190-FL02

MC190-FL03

MC190-FL04

MC190-FL05

MC190-FL06

MC190-FL07

More product references in the same series:

MC260 Capsule Slip Rings

Circuits(Rings): 1~12

Length(mm): 26

OD(mm): 22

Download: mc260.pdf

More>>
MC330 Capsule Slip Rings

Circuits(Rings): 1~18

Length(mm): 33

OD(mm): 22

Download: mc330.pdf

More>>
MC573 Capsule Slip Rings

Circuits(Rings): 1~36

Length(mm): 57.3

OD(mm): 22

Download: mc573.pdf

More>>
MC857 Capsule Slip Rings

Circuits(Rings): 1~56

Length(mm): 85.7

OD(mm): 25

Download: mc857.pdf

More>>
