MG119 Series

OD 86mm, 2~108 rings

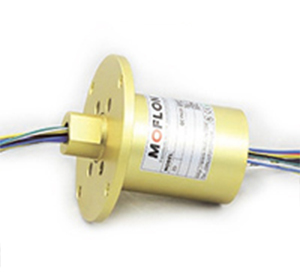

MG119 series slip rings is rotating contact, rotating cable connector,can get 10A/signal passed when 360°rotating, with OD 119mm, with flange on the stator side,solid ,no through hole. which well supplied to flange mounting application.
• With solid style, no through bore, can support much more circuits at the same OD.
• This solid stator flange slip ring is suitable for end face mounting by stator flange.

Download MG119 Catalog Download 3D Model

Standard series PART# Explanation

Product Quality Level Table
Products Level Code	Max speed	Working Life	Contact Material
VC	200RPM	15Million Revs.	Precious Metal
VD	600RPM	80Million Revs.	Precious Metal

Specifications of MG119 Rotating Contact, Rotating Cable Connector
Mechanical data		Electrical data
Parameter	Value	Parameter	Value
Working Life	See Prod Quality Level		Power	Signal
Rotating Speed	See Prod Quality Level	Rated Voltage	0~440VAC/VDC	0~440VAC/VDC
Working Temp.	-30℃~80℃	Insulation Res	≥1000MΩ/500VDC	≥1000MΩ/500VDC
Operating Humidity	0~85% RH	Lead Wires	AWG16#Teflon	AWG22#Teflon
Contact Material	See Prod Quality Level	Lead Length	Standard 300mm
Housing Material	Aluminium Alloy	Dielectric Strength	500VAC@50Hz，60s
Torque	0.1N.m;+0.03/6ring	Res Noise	<0.01Ω
Protection grade	IP51

MG119 series slip ring part list
Part#	10A	Signal/5A	Length(mm)	Part#	10A	Signal/5A	Length(mm)
MG119-S02	0	2	36	MG119-S36	0	36	165.2
MG119-P0210	2	0	36	MG119-P0610-S30	6	30	165.2
MG119-S03	0	3	39.8	MG119-P1210-S24	12	24	165.2
MG119-P0310	3	0	39.8	MG119-P3610	36	0	165.2
MG119-S06	0	6	51.2	MG119-S42	0	42	188
MG119-P0210-S04	2	4	51.2	MG119-P0610-S36	6	36	188
MG119-P0410-S02	4	2	51.2	MG119-P1210-S30	12	30	188
MG119-P0610	6	0	51.2	MG119-S48	0	48	210.8
MG119-S12	0	12	74	MG119-P0610-S42	6	42	210.8
MG119-P0210-S10	2	10	74	MG119-P0910-S39	9	39	210.8
MG119-P0310-S09	3	9	74	MG119-P1210-S36	12	36	210.8
MG119-P0610-S06	6	6	74	MG119-P1810-S30	18	30	210.8
MG119-P0810-S04	8	4	74	MG119-P2410-S24	24	24	210.8
MG119-P1010-S02	10	2	74	MG119-S60	0	60	256.4
MG119-P1210	12	0	74	MG119-P0610-S54	6	54	256.4
MG119-S18	0	18	96.8	MG119-P0910-S51	9	51	256.4
MG119-P0210-S16	2	16	96.8	MG119-P1210-S48	12	48	256.4
MG119-P0410-S14	4	14	96.8	MG119-S72	0	72	312
MG119-P0610-S12	6	12	96.8	MG119-P0610-S66	6	66	312
MG119-P0810-S10	8	10	96.8	MG119-P1210-S60	12	60	312
MG119-P1010-S08	10	8	96.8	MG119-P2410-S48	24	48	312
MG119-P1210-S06	12	6	96.8	MG119-P3610-S36	36	36	312
MG119-P1410-S04	14	4	96.8	MG119-S84	0	84	367.6
MG119-P1610-S02	16	2	96.8	MG119-P1210-S72	12	72	367.6
MG119-S24	0	24	119.6	MG119-P2410-S60	24	60	367.6
MG119-P0410-S20	4	20	119.6	MG119-P3610-S48	36	48	367.6
MG119-P0610-S18	6	18	119.6	MG119-S96	0	96	413.2
MG119-P1210-S12	12	12	119.6	MG119-P1210-S84	12	84	413.2
MG119-P1810-S06	18	6	119.6	MG119-P2410-S72	24	72	413.2
MG119-P2410	24	0	119.6	MG119-P3610-S60	36	60	413.2
MG119-S30	0	30	142.4	MG119-P4210-S54	42	54	413.2
MG119-P0610-S24	6	24	142.4	MG119-S108	0	108	458.8
MG119-P1210-S18	12	18	142.4	MG119-P1210-S96	12	96	458.8
MG119-P1810-S12	18	12	142.4	MG119-P2410-S84	24	84	458.8
MG119-P2410-S06	24	6	142.4	MG119-P3610-S72	36	72	458.8
MG119-P3010	30	0	142.4	MG119-P4810-S60	48	60	458.8

What is rotating contact and rotating cable connector?

A special electrical connector which can get power/signal passed from stationary part to rotating part, at the same time, all electrical wires is not twisted. moflon supply full range of rotating contact and rotating cable connector slip rings for agricultural, automotive, heavy duty, industrial,marine and powersports applications for the aftermarket.
