MW1000 Series
MW series Power Slip Ring(or Rotary Electrical,Electrical Swivel)
MW1000 slip rings
  • MW1000 series is compact large current and high power slip rings, get high current and high power passed when rotating free 360°, also be called as rotary electrical,electrical swivel,electric swivel. each circuit can pass 10A/20A/30A/40A/60A, supporting 1 to 12 circuits, OD is 22mm~30mm. the rotary electrical device is most effective, and if you require some customization on electrical swivel or electric swivel,rotary electrical.

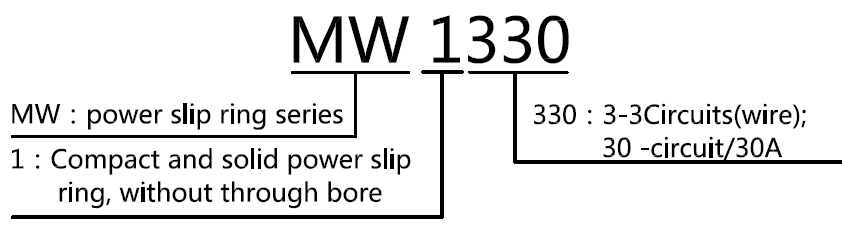

Standard series PART# Explanation

Specifications of Rotary Electrical( or Electric Swivel)
Mechanical DataElectrical Data
ParameterValueParameterValue
Working Life10 Million revsPower
Rotating Speed150RPMRated Voltage0~600VAC/VDC
Working temp-30℃~80℃Insulation Resistance≥1000MΩ/500VDC
Operating Humidity0~85% RHLead Wires10A=AWG#16;20A=AWG#14;30A=AWG#12;
Contact Materialprecious metalLead LengthStandard 300mm(adjustable)
Housing MateriaPBTInsulating Strength500VAC@50Hz,60s
Torque0.1N·m;+0.03N·m/6ringsElectrical Noise<0.01Ω
Protection GradeIP51



MW1000 Series Part# List
Parts#RingRated current per ring(A)Parts#RingRated current per ring(A)
MW1210210AMW1320320A
MW1310310AMW1420420A
MW1410410AMW1620620A
MW1610610AMW1230230A
MW1215215AMW1330330A
MW1315315AMW1430430A
MW1415415AMW1630630A
MW1615615AMW1240240A
MW1220220AMW1340340A

Note: Power slip ring alse be called as rotary electrical,electrical swivel,electric swivel, N rings 10A in parallel can be used as 1 channel N * 10A. For example: 2 rings 10A in parallel can be used as 1 channel 20A

Water-proof Series Part# List
Parts#RingRated current per ring(A)Protection Grade
MW1121-IP651210AIP65
MW1330-IP65330AIP65
MW1630-IP65630AIP65


MW1210 Dimension(2 rings, each ring 10A)


MW1310 Dimension(3 rings, each ring 10A)


MW1410 Dimension(4 rings, each ring 10A)


MW1215, MW1315, MW1220, MW1230,MW1320,MW1330 Dimension


MW1415, MW1615, MW1610, MW1420, MW1430, MW1620, MW1630, MW1240, MW1340 Dimension


MW1810, MW1101, MW1121


MW1221 IP65 Dimension(12 rings, each ring 10A)


MW1330 IP65 Dimension(3 rings, each ring 30A)


MW1630 IP65 Dimension(6 rings, each ring 30A)
