MAPH200F series Liquid Rotary Unions(+Electric Slip Rings)

MAPH200F Series

2 Inlet 2 Outlet Rotary Unions + 0~96 Circuits

MAPH200F series is 2 inlet 2 outlet pneumatic/hydraulic rotary unions (optional + electrical slip rings) could connect with M5、G1/8、G1/4、G3/8、G1/2 channel ,also can combine with 2~96 power wires,signal wires ,Ethernet, USB, Industrial BUS, control line, solenoid valve, sense line,etc. It's Standard Flange installation, hollow shaft can be customized as well.
Media Types: Air/Gas,Vacuum,Chemical,DI/Tap Water,Oil,etc.

Download MAPH200F Catalog Download 3D Model

Standard series PART# Explanation

Specification
Rotary Union Specifications			Mechanical data
Parameter	Value		Parameter	Value
Passage	2 in 2 out		Working Life	See Prod Quality Level
Max.	10MPa，Vacuum 0.01torr		Rotating Speed	See Prod Quality Level
Torque	Consult technician about details		Working Temp.	-30℃~80℃
Electrical data			Operating Humidity	0~85% RH
Parameter	Value		Contact Material	Precious Metal
	Power	Signal	Housing Material	Aluminium Alloy
Rated Voltage	0~440VAC/VDC	0~440VAC/VDC	Protection grade	IP51
Insulation Res	≥1000MΩ/500VDC	≥1000MΩ/500VDC
Lead Wires	AWG17#Teflon	AWG22#Teflon
Lead Length	Standard 300mm
Dielectric Strength	500VAC@50Hz，60s
Res Noise	<0.01Ω

MAPH200F-01

MAPH200F-02

MAPH200F-03

MAPH200F-04

MAPH200F-05

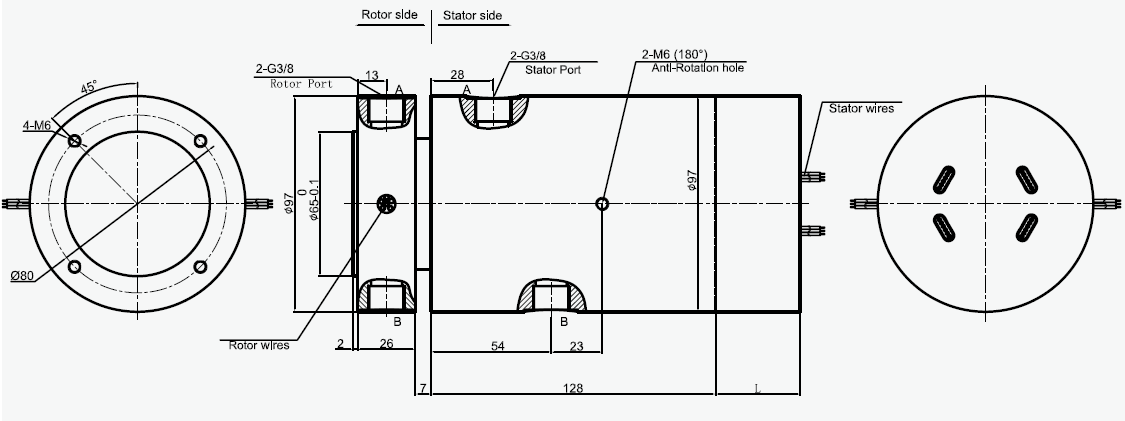

MAPH200F-XX Pnuematic/Hydraulic Hybrid Slip Ring 1）XX=01,Connection size=M5， Tube size3~6mm 2）XX=02,Connection size=G1/8，Tube size3~10mm 3）XX=03,Connection size=G1/4，Tube size3~12mm 4）XX=04,Connection size=G3/8，Tube size3~16mm 5）XX=05,Connection size=G1/2，Tube size3~20mm
Part#	Passages	10A	Signal/5A	Length(mm)	Part#	Passages	10A	Signal/5A	Length(mm)
MAPH200F-XX-S06	2 in 2 out	0	6	38	MAPH200F-XX-P0810-S10	2 in 2 out	8	10	71.6
MAPH200F-XX-P0210-S04	2 in 2 out	2	4	38	MAPH200F-XX-P1010-S08	2 in 2 out	10	8	71.6
MAPH200F-XX-P0410-S02	2 in 2 out	4	2	38	MAPH200F-XX-P1210-S06	2 in 2 out	12	6	71.6
MAPH200F-XX-P0610	2 in 2 out	6	0	38	MAPH200F-XX-P1410-S04	2 in 2 out	14	4	71.6
MAPH200F-XX-S12	2 in 2 out	12	0	54.8	MAPH200F-XX-P1610-S02	2 in 2 out	16	2	71.6
MAPH200F-XX-P0210-S10	2 in 2 out	2	10	54.8	MAPH200F-XX-S24	2 in 2 out	0	24	88.4
MAPH200F-XX-P0310-S09	2 in 2 out	3	9	54.8	MAPH200F-XX-P0410-S20	2 in 2 out	4	20	88.4
MAPH200F-XX-P0610-S06	2 in 2 out	6	6	54.8	MAPH200F-XX-P0610-S18	2 in 2 out	6	18	88.4
MAPH200F-XX-P0810-S04	2 in 2 out	8	4	54.8	MAPH200F-XX-P1210-S12	2 in 2 out	12	12	88.4
MAPH200F-XX-P1010-S02	2 in 2 out	10	2	54.8	MAPH200F-XX-S30	2 in 2 out	0	30	105.2
MAPH200F-XX-P1210	2 in 2 out	12	0	54.8	MAPH200F-XX-P0610-S24	2 in 2 out	6	24	105.2
MAPH200F-XX-S18	2 in 2 out	0	18	71.6	MAPH200F-XX-S36	2 in 2 out	0	36	125
MAPH200F-XX-P0210-S16	2 in 2 out	2	16	71.6	MAPH200F-XX-S42	2 in 2 out	0	42	141.8
MAPH200F-XX-P0410-S14	2 in 2 out	4	14	71.6	MAPH200F-XX-S48	2 in 2 out	0	48	158.6
MAPH200F-XX-P0610-S12	2 in 2 out	6	12	71.6

10A and Signal(5A) can be combined in any way as you need，Max.Ring:96 rings,Can be customized based on standard slip rings，Please contact us.
