MP220 Series
ID 25.4mm, Thickness 22mm, 1~48 Rings
MP220 slip rings
  • MP220 pancake slip ring have a thickness of 22mm,all aluminum alloy structure,using precious metal contact material and gold-plated processing. It can transmit stable signal and power with small resistance fluctuations.
    Designed for min thickness requirements,when thickness is restrictive but diameter is less restrictive.

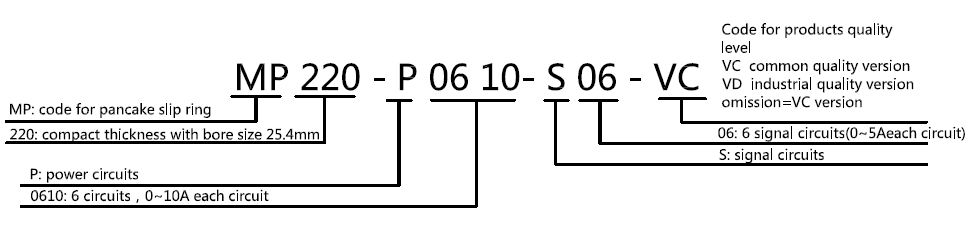

Standard series PART# Explanation

Product Quality Level Table
Products Level CodeMax speedWorking LifeContact Material
VC60RPM3Million Revs.Precious Metal
VD200RPM10Million Revs.Precious Metal

Specification
Mechanical dataElectrical data
ParameterValueParameterValue
Working LifeSee Prod Quality LevelPowerSignal
Rotating SpeedSee Prod Quality LevelRated Voltage0~440VAC/VDC0~240VAC/VDC
Working Temp.-30℃~80℃Insulation Res≥1000MΩ/500VDC≥1000MΩ/500VDC
Operating Humidity0~85% RHLead WiresAWG16#TeflonAWG22#Teflon
Contact MaterialSee Prod Quality LevelLead LengthStandard 300mm
Housing MaterialAluminium AlloyDielectric Strength500VAC@50Hz,60s
Torque0.05N.m;+0.03/6ringRes Noise<0.01Ω
Protection gradeIP51

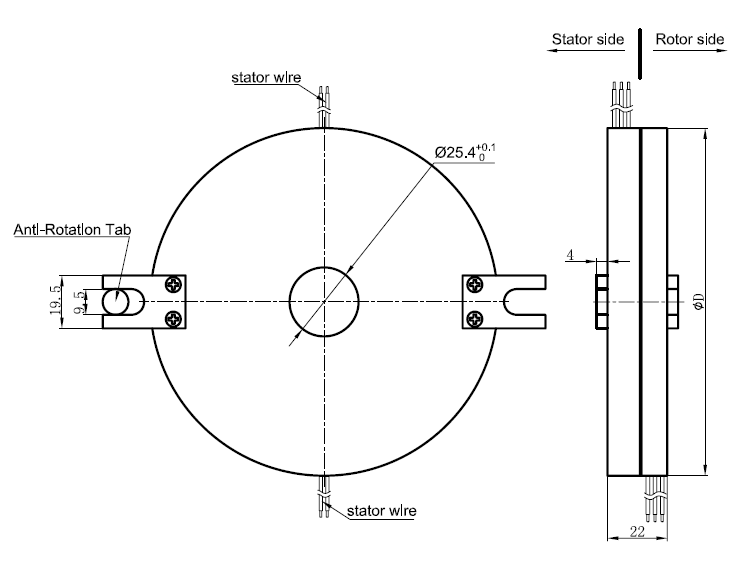

MP220 series pancake slip ring
Part#Signal/5A10A20AФ D(mm)
MP220-S0220092
MP220-P021002092
MP220-P0210-S02220108
MP220-P0410040108
MP220-S06600124
MP220-P0610060124
MP220-P0620006124
MP220-P0210-S04420124
MP220-S121200172
MP220-P12100120172
MP220-P12200012172
MP220-P0610-S06660172
MP220-P0620-S06606172
MP220-S181800216
MP220-P18100180216
MP220-P0610-S121260216
MP220-P1210-S066120216
MP220-P0810-S101080216
MP220-S242400268
MP220-P24100240268
MP220-P0610-S186180268
MP220-P1210-S1212120268
MP220-S363600364
MP220-S484800460

Through bore size,total circuits and current can be customized,please contact sales
